Multi-functional Alcohol Recycling Concentrator

Multi-functional alcohol recycling concentrator is designed by Hangzhou Huihe Company adopts circulation and vacuum negative pressure evaporation way, owns advantages of simple operation, small covering area, is in accordance with GMP requirements.

Characteristics of Multi-functional Alcohol Recycling Concentrator

1. Alcohol recycling

Big capacity of recycling, vacuum operation improves the techniques flow of the equipment. High recycling rate of 95% reduces the alcohol loss to less than 5%. Energy cost reduced by 30%, small investment and big profit.

2. Contracting the liquid material

Combination of external cycling and vacuum vaporizing, quick vaporizing，high condensing specific gravity （1.3-1.4）,simple operation, small area taking; nice appearance, heater, vaporizer and heat keeper integrated and stainless steel board as the protection for external heat-keeping. The alcohol deposition recovery equippment is according to GMP standard.

Technical Parameters of Multi-functional Alcohol Recycling Concentrator

Model		DH-500	DH-1000	DH-1500
Parameters
Evaporation		500	1000	1500
Recycle alcohol		200	350	500
Recycle alcohol degree		85 alcohol degree
Working pressure		0.03-0.09
Evaporation temperature		40-85℃
Vacuum degree		Above 620mmHg
Concentration proportion		1.2-1.4
Weight Kg		1300kg	1850kg	2850kg
Body size mm	Length	2000	2200	2500
	Width	1000	1200	1300
	Height	3000	3300	3500

Notes:

The technical parameters of alcohol deposition recovery equippment is standard configuration. Any specific requirements, please let us know.

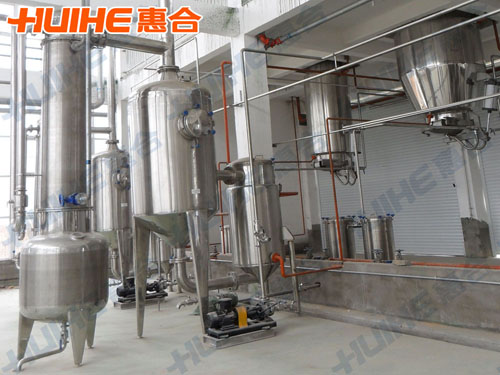

Multi-functional Alcohol Recycling Concentrator Finished Picture
